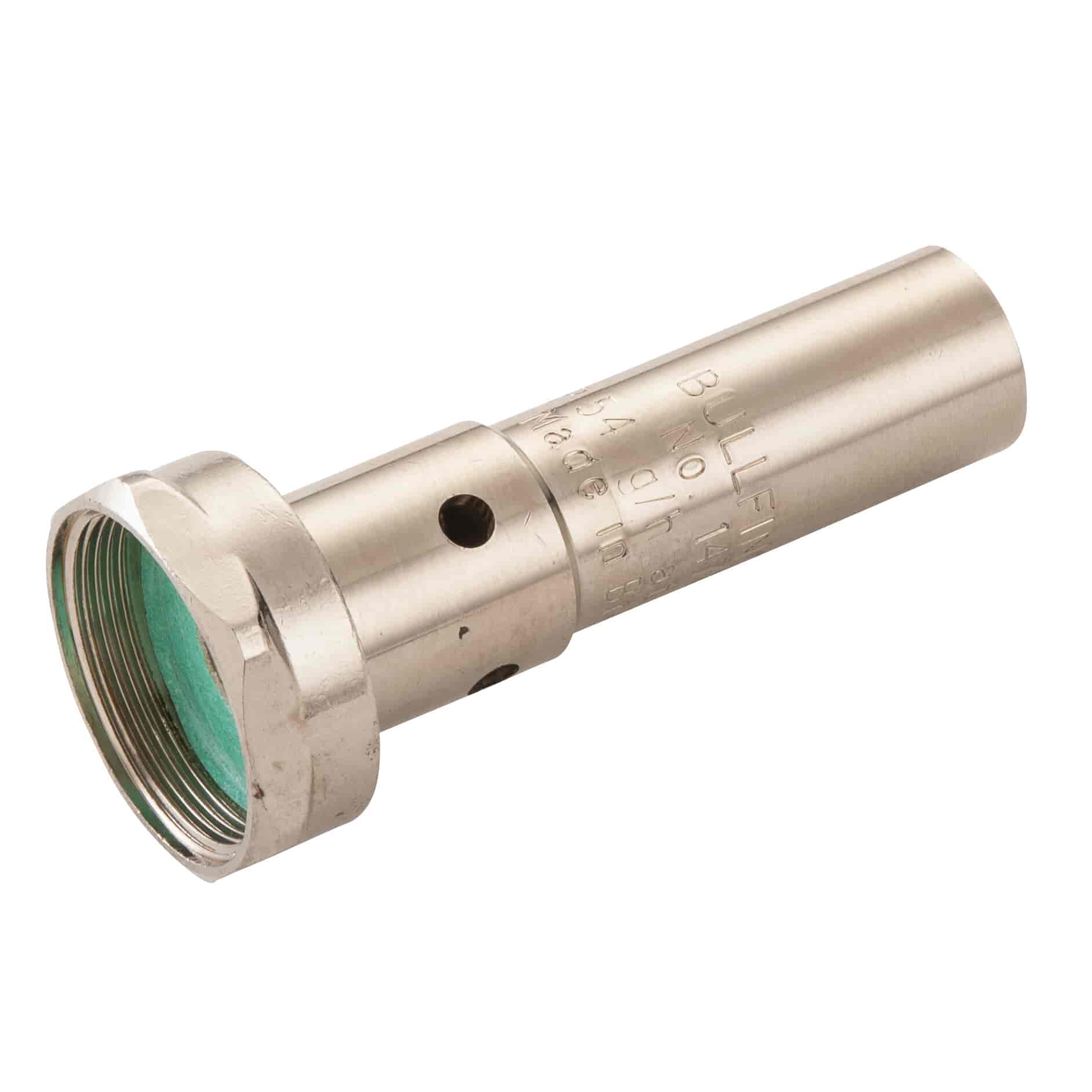

The Bullfinch 1472 Precision Burner has a 0.75 kW output and measures approximately 105mm x 8mm and produces the smallest possible flame with the least amount of gas consumed - only 22 g/h. It's perfect for all of your small scale soldering needs, as well as for precision heating and working in tight access areas. The Bullfinch 1472 Precision Burner is designed to be used with Bullfinch handles 1185, 1245 and 1340. This product is manufactured under the quality management standard of BS EN ISO 9002 and comes with a 5 year warranty against faulty parts or defective workmanship.
In contrast to the large bullfinch standard burners that are great for providing broad heat for various roofing applications and general heating needs, the bullfinch 1472 is a smaller, compact precision burner measuring 74 x 16 mm that will provide you with a very fine, 8mm wide flame for precise, exact heat control. The bullfinch 1472 has a lower output level of 0.75 kW and uses less gas at 22g/h compared to other precision burners on the market which make this unit suitable for all of your small-scale soldering requirements as well as for electronic components and when you need to use a focused flame rather than brute force..
Key Features & Benefits
Well defined precision flame -- The flame produced by this unit is quite small at 105mm X 8mm making it easier to use in confined space applications.
75kW Output at 1 Bar -- A low power precision burner ideal for using in confined areas where a more powerful burner may not fit and/or would cause excessive heat damage to surrounding materials.
22g/h Gas Consumptionn -- Produces a very low gas flow rate compared to most other precision burners available; saves money on gas usage when performing repeated operations.
Compact 74 x 16mm Body -- Due to its size this unit can be placed into tight areas where larger units cannot reach.
Fitted for Bullfinch 1185, 1245 and 1340 Handsets -- Compatible with all models within the Bullfinch Standard Handle Range.
1" x 26 TPI Whitform Male Thread -- Uses the same threaded connector as all of the other bullfinch standard handsets allowing users to easily connect the burner directly to their existing handset.
BS EN ISO 9002 Certified -- Manufactured to quality standards per the British Standards Institute.
5 Year Guarantee -- Warranty covers both faulty parts/components and defective workmanship.
Ideal For
Small-scale soldering & precision heating
Tight access areas requiring a compact burner
Low-output controlled flame applications
Bullfinch 1185, 1245 & 1340 handle owners
Adding precision capability to an existing Bullfinch torch setup
Precision flame, minimal gas, maximum control. The Bullfinch 1472 Burner is in stock and ready to ship. Order today and add focused precision heating capability to your Bullfinch Standard torch handle.
Specification
Bullfinch 1472 Burner for Standard Gas Blow Torch Specification
Brand
Bullfinch
Model
1472
Product Type
Standard Gas Blow Torch Burner
Burner Dimensions
74 × 16mm
Flame Dimensions
105mm length × 8mm width
Heat Output
0.75 kW (2,550 Btu/hr) at 1 bar
Gas Consumption
22 g/h at 1 bar
Jet Size
6B
Outlet Thread
1" × 26 tpi whit form male
Compatible Handles
Bullfinch 1185, 1245 & 1340
Certification
BS EN ISO 9002
Suitable Applications
Gas welding, brazing & soldering
Warranty
5 years against faulty components and workmanship
Features
Bullfinch 1472 Burner for Standard Gas Blow Torch Features
Well-Defined Precision Flame — 105mm × 8mm flame for focused, accurate heat delivery in tight spaces.
0.75kW Output at 1 Bar — Low-output precision burner — controlled heat for small-scale and delicate applications.
22g/h Gas Consumption — Very low gas consumption — economical for frequent precision work.
Compact 74 × 16mm Body — Small enough to access confined areas where larger burners cannot reach.
Fits Bullfinch 1185, 1245 & 1340 Handles — Direct fit on the full Bullfinch Standard handle range.
1" × 26 tpi Whit Form Male Thread — Standard Bullfinch outlet thread for direct handle connection.
BS EN ISO 9002 Certified — Quality-certified manufacture.
5-Year Warranty — Against faulty components and workmanship.
