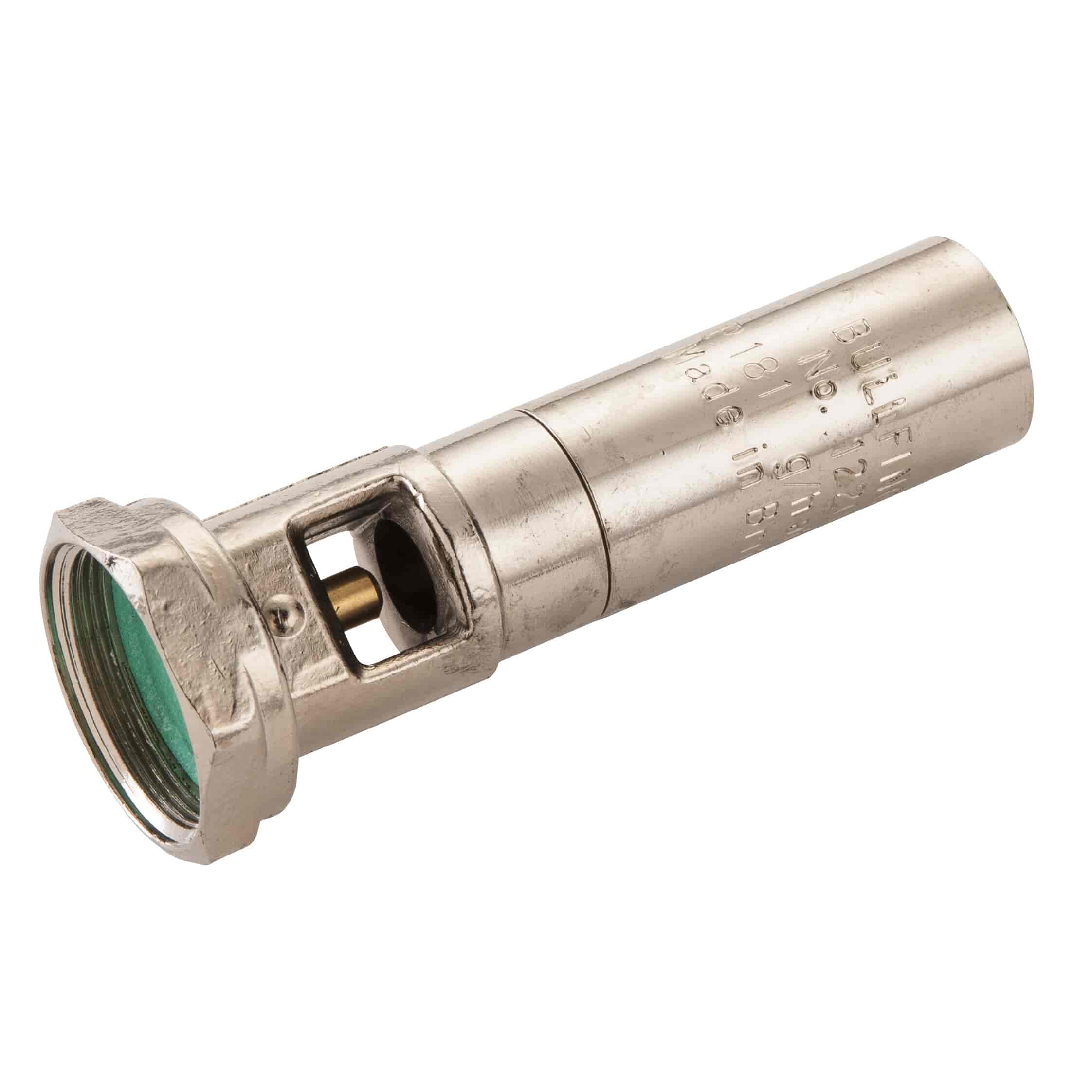

The Bullfinch 1230 is a General Purpose Burner that has an output of 4.5 kW which will produce a 185 mm x 28 mm flame and consume approximately 325 g/h of gas. This makes it ideal for use in various general-purpose applications such as; gas welding, brazing, soldering and general heating. It fits on the bullfinch models (1185, 1245 and 1340) and comes with a 5 year warranty from the date of purchase.
This product is made to meet the standards of BS EN ISO 9002.
Key Features & Benefits
185mm × 28mm General Purpose Flame — The standard workhorse flame for heating, brazing and soldering across a range of applications.
4.5kW Output at 1 Bar — The same output as the 110P and 140P kit burner — full general heating capability.
325g/h Gas Consumption — Consistent with the 1473 soft flame at the same output.
88 × 25mm Burner Body — Compact general purpose dimensions.
Fits Bullfinch 1185, 1245 & 1340 Handles — Direct fit via 1" × 26 tpi whit form male outlet.
BS EN ISO 9002 Certified
5-Year Warranty
Ideal For
General heating, brazing & soldering
Replacing the burner in a Bullfinch 110P or 140P kit
Building a custom Bullfinch Standard torch configuration
Bullfinch 1185, 1245 & 1340 handle owners
The standard Bullfinch general purpose burner — available separately. Order today as a replacement or custom kit component.
Specification
Bullfinch 1230 Burner for Standard Gas Blow Torch Specification
Brand
Bullfinch
Model
1230
Burner Dimensions
88 × 25mm
Flame Dimensions
185mm length × 28mm width
Heat Output
4.5 kW (15,450 Btu/hr) at 1 bar
Gas Consumption
325 g/h at 1 bar
Jet Size
30B
Outlet Thread
1" × 26 tpi whit form male
Compatible Handles
Bullfinch 1185, 1245 & 1340
Certification
BS EN ISO 9002
Suitable Applications
Gas welding, brazing & soldering
Warranty
5 years against faulty components and workmanship
Features
Bullfinch 1230 Burner for Standard Gas Blow Torch Features
185mm × 28mm General Purpose Flame — The standard workhorse flame for heating, brazing and soldering across a range of applications.
4.5kW Output at 1 Bar — The same output as the 110P and 140P kit burner — full general heating capability.
325g/h Gas Consumption — Consistent with the 1473 soft flame at the same output.
88 × 25mm Burner Body — Compact general purpose dimensions.
Fits Bullfinch 1185, 1245 & 1340 Handles — Direct fit via 1" × 26 tpi whit form male outlet.
BS EN ISO 9002 Certified
5-Year Warranty
