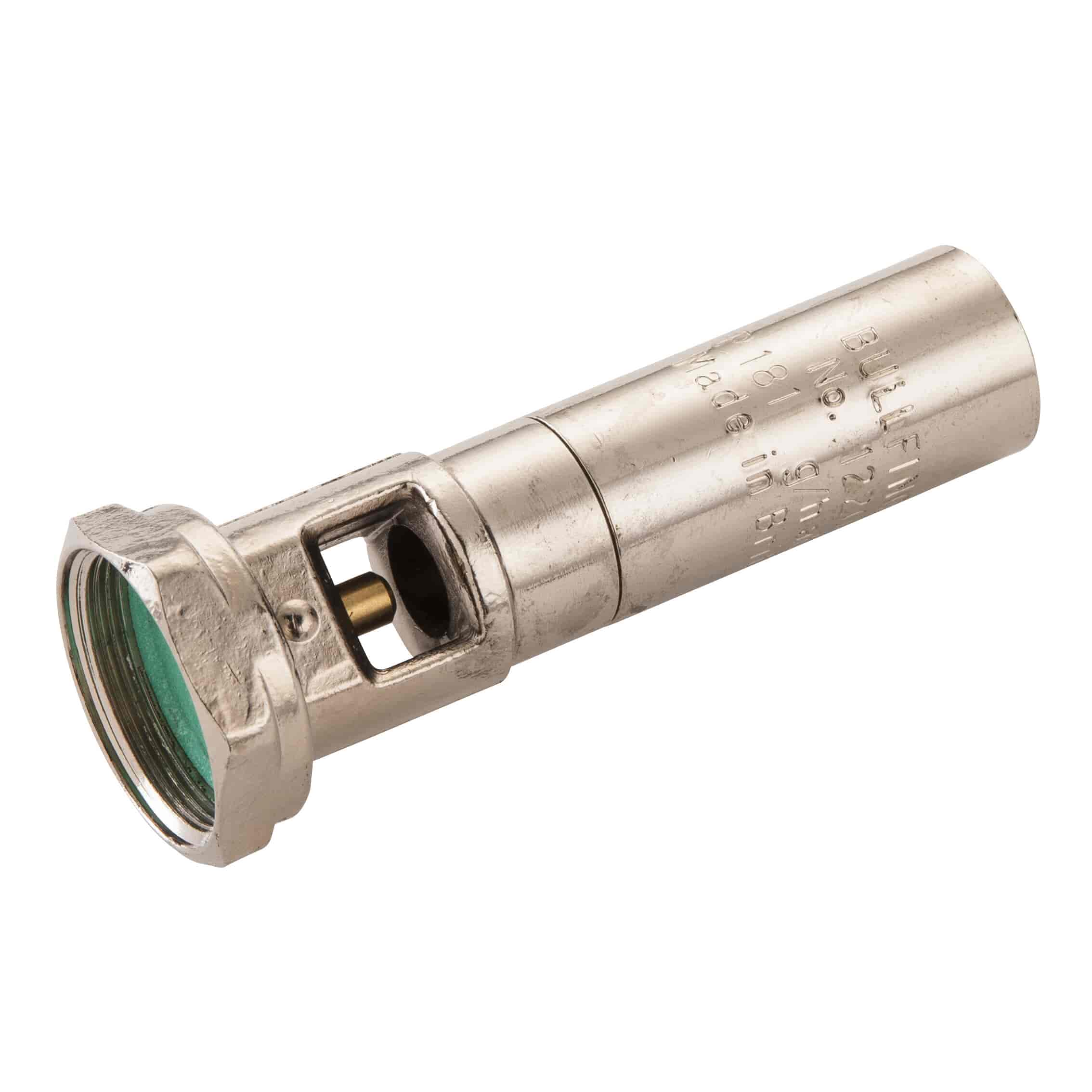

The Bullfinch 1220 Burner has a medium flame, ideal for soldering and silver soldering. It is capable of producing a 155mm x 21mm flame at an output of 2.5kw and gas consumption of 181 g/hr (between that of the 1210 which has a lower output and smaller flame and the 1230 with a larger flame). The Bullfinch 1220 will fit any Bullfinch Standard Torch Handle as it uses the same outlet (1" x 26 TPI)
Key Features & Benefits
155mm × 21mm Medium Flame — Wider than the 1210, narrower than the 1230 — the right flame size for soldering and silver soldering applications.
2.5kW Output at 1 Bar — Medium output for controlled soldering work without excess heat.
181g/h Gas Consumption — Efficient for sustained soldering sessions.
83 × 19mm Burner Body — Compact enough for most installation access requirements.
Fits Bullfinch Standard Handles — 1" × 26 tpi whit form male outlet for direct handle connection.
BS EN ISO 9002 Certified
5-Year Warranty
Ideal For
Soldering & silver soldering
Applications requiring a medium flame between the 1210 and 1230
Bullfinch Standard torch handle owners
Medium flame, precise output for soldering and silver soldering. The Bullfinch 1220 Burner is in stock and ready to ship. Order today and add medium-flame capability to your Bullfinch Standard torch setup.
Specification
Bullfinch 1220 Burner for Standard Gas Blow Torch Specification
Brand
Bullfinch
Model
1220
Burner Dimensions
83 × 19mm
Flame Dimensions
155mm length × 21mm width
Heat Output
2.5 kW (8,600 Btu/hr) at 1 bar
Gas Consumption
181 g/h at 1 bar
Jet Size
16B
Outlet Thread
1" × 26 tpi whit form male
Compatible Handles
Bullfinch 1185, 1245 & 1340
Certification
BS EN ISO 9002
Suitable Applications
Soldering & silver soldering
Warranty
5 years against faulty components and workmanship
Features
Bullfinch 1220 Burner for Standard Gas Blow Torch Features
155mm × 21mm Medium Flame — Wider than the 1210, narrower than the 1230 — the right flame size for soldering and silver soldering applications.
2.5kW Output at 1 Bar — Medium output for controlled soldering work without excess heat.
181g/h Gas Consumption — Efficient for sustained soldering sessions.
83 × 19mm Burner Body — Compact enough for most installation access requirements.
Fits Bullfinch Standard Handles — 1" × 26 tpi whit form male outlet for direct handle connection.
