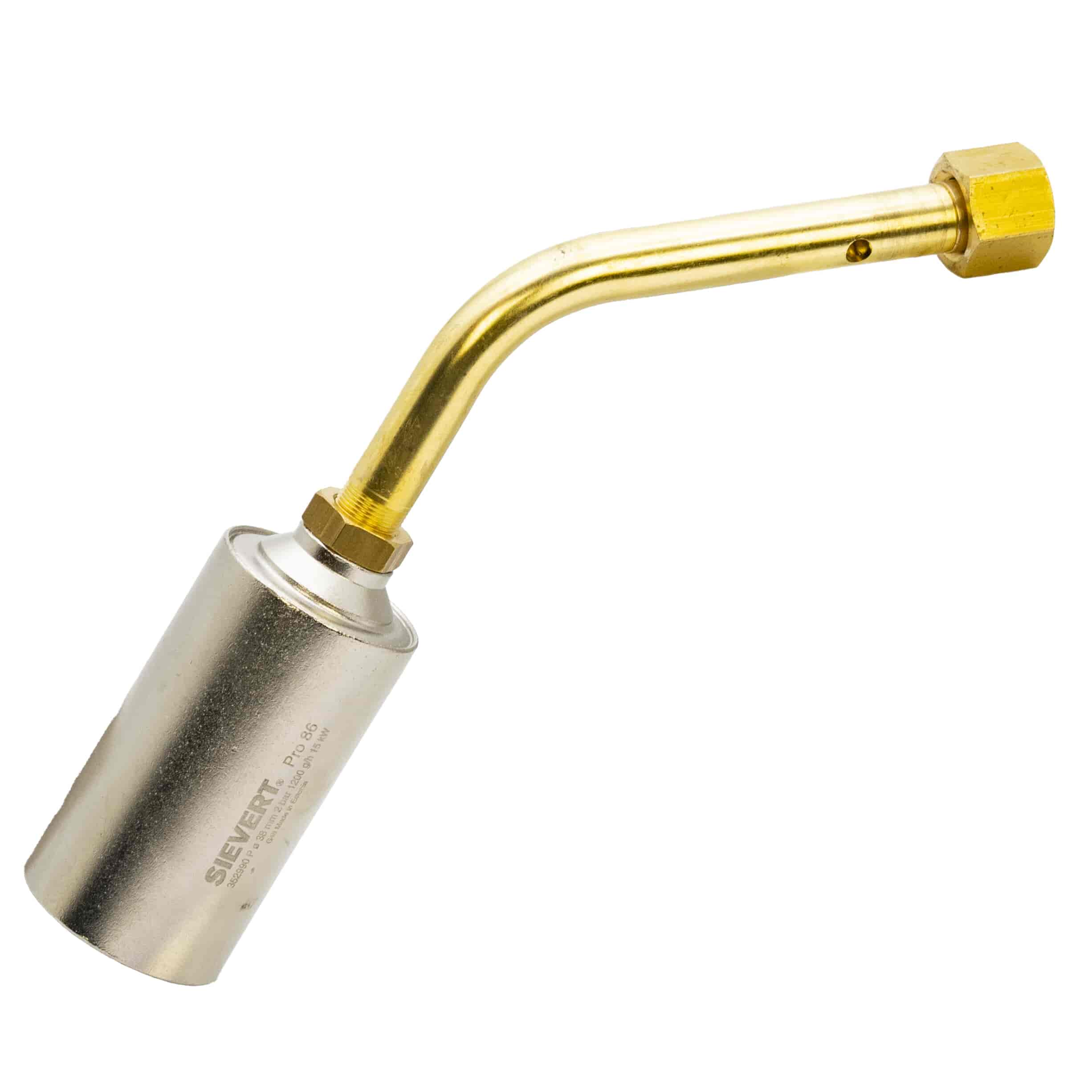

Sievert 3529 Soft Flame gas Blow Torch Burner - 38mm
In stock
£53.04
£44.20
SKU
352990
Or 3 Interest-Free Payments of £17.68
Description
Sievert 3529 Soft Flame Burner 38mm – 352990 | Cable Jointing & Heat Shrinking - Sievert 86 & 88 Pro
This is the bigger soft flame burner for the Sievert Pro 86/88 system - move up from the 3528 (28mm) if you need to deal with larger cable diameters. It's got this really nice yellow-and-blue soot-free flame - even better because its windproof - plus a fresh air inlet to keep the air from getting too hot. Just mount it directly to the Pro 86/88 handle with a G 3/8"-19 thread - no neck tube needed. 15 kilowatts, gives you 1200 grams an hour at 2 bar. 38mm, integrated neck tube at 30° and it's 80mm long.
Key Features & Benefits
- 38mm Soft Flame - The Upgrade from the 3528 - way better for bigger heat shrink sleeve jobs.
- Plugs Straight into Pro Handle - No Neck Tube Required - the G 3/8"-19 thread just screws right into the handle - its the most compact 38mm soft flame setup you can get on the Pro.
- Sweeping Soot-Free Flame - nice and clear to see even in the daytime - soot-free so you can use it on cable sheathing without damaging it.
- Fresh Air Inlet - Keeps The Burner Head Cool - draws in some ambient air while its burning which stops the heat from charring the material at the contact point.
- 15kW / 1200g/h - puts out a bit more heat than the Promatic 334191 (38mm, 11.5kW) which will save you a bit of time when doing heat shrinking on the Pro handle system.
- 80mm Integrated Neck Tube at 30° - its compact which is handy when you are positioning it for cable jointing.
- Made from Brass & Stainless Steel
Ideal For
- Cable jointing & heat shrinking when you are dealing with bigger cable sizes
- Any kind of cable work or other type of heat shrinking job
- People who already own the Sievert Pro 86 (3486) or Pro 88 (3488) handle
- If you need a bit more coverage than the 3528 (28mm) can give you
38mm soft flame for cable jointing and heat shrinking — just attach it to your Pro 86/88 handle. You can also get the 3528 (28mm) if you need to do some smaller cable sizes.
Specification
Sievert 3529 Soft Flame gas Blow Torch Burner - 38mm Specification
| Brand | Sievert |
|---|---|
| Article Number | 352990 |
| Flame Type | Soft flame – sweeping, soot-free, windproof |
| Burner Diameter | 38mm |
| Heat Output | 15 kW at 2 bar |
| Working Pressure | 2 bar |
| Gas Consumption | 1200 g/h at 2 bar |
| Handle Connection | G 3/8"-19 – direct to Pro 86/88 handle, no neck tube needed |
| Integrated Neck Tube | 80mm at 30° |
| Material | Brass & stainless steel |
| Compatible Handles | Sievert Pro 86 (3486) & Pro 88 (3488) |
| Suitable Applications | Cable jointing, cable work & heat shrinking |
| Smaller Option | Sievert 3528 (28mm, 11.3kW) – for smaller sleeve diameters |
Features
Sievert 3529 Soft Flame gas Blow Torch Burner - 38mm Features
- 38mm Soft Flame — Step Up from the 3528 — Wider head coverage for larger heat shrink sleeve diameters.
- Direct Pro Handle Connection — No Neck Tube Required — G 3/8"-19 thread connects directly to the Pro 86/88 handle — the most compact soft flame 38mm configuration on the Pro system.
- Sweeping Soot-Free Windproof Flame — Yellow-and-blue, clearly visible in daylight — soot-free for clean application on cable sheathing.
- Fresh Air Inlet — Cool Burner Head — Ambient air drawn in during operation prevents burning or charring the shrink material at the contact point.
- 15kW / 1200g/h — Higher output than the equivalent Promatic 334191 (38mm, 11.5kW) for faster heat shrinking on the Pro handle system.
- 80mm Integrated Neck Tube at 30° — Compact for cable jointing positioning.
- Brass & Stainless Steel Construction
