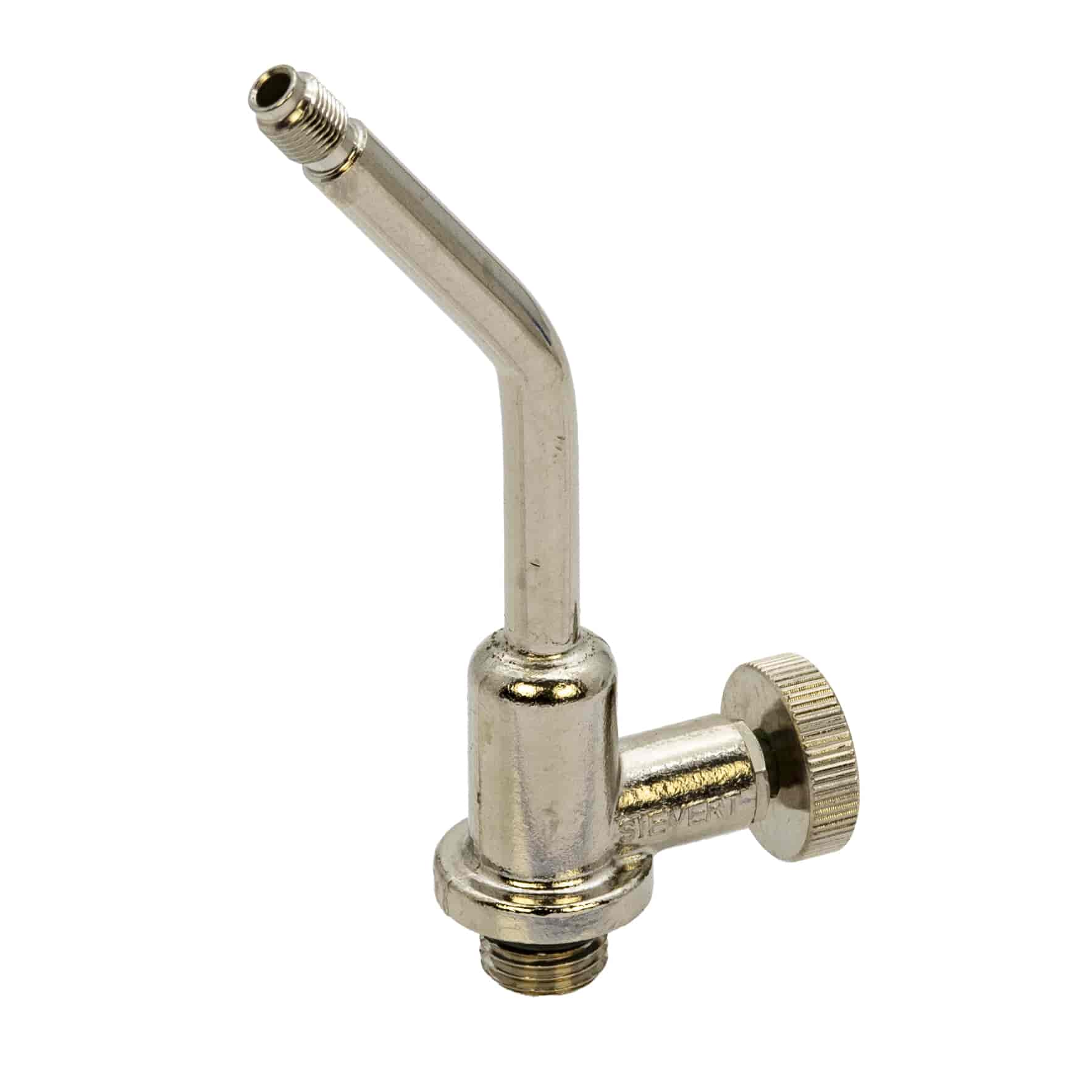

Sievert Light Line 871601 – 8716 Neck & Valve Assembly for Primus 2000 & Calor 340
A brass neck and valve assembly that connects directly to a Primus 2000 or Calor 340 gas cylinder — no hose or regulator required. Needle valve for precise flame control, back pressure valve to reduce flare-up risk. Accepts M8 × 0.75 thread burners from the Sievert Light Line range (8725, 8719, 8720, 8842). 178 × 27 × 86mm, 136g. Steel handle.
The Sievert 8716 Light Line assembly is the compact, cylinder-mounted torch system — where the Pro 86 and Promatic handle systems connect via a hose and regulator, the 8716 screws directly onto the top of a Primus 2000 or Calor 340 cartridge cylinder. This makes it an ultracompact, portable torch solution with no hose to manage and no separate regulator to fit. The needle valve provides precise flame adjustment and the back pressure valve reduces the risk of flare-up on ignition. Burners from the Sievert Light Line range (8725, 8719, 8720 and 8842) thread directly onto the M8 × 0.75 outlet of the 8716 assembly. Burners are sold separately.
Key Features & Benefits
Direct Cylinder Connection — Connects directly to Primus 2000 or Calor 340 cartridges — no hose, no regulator, fully self-contained torch system.
Needle Valve — Precise flame control directly at the assembly.
Back Pressure Valve — Reduces the risk of flare-up on ignition.
M8 × 0.75 Burner Thread — Accepts Sievert Light Line burners 8725, 8719, 8720 and 8842 — burners sold separately.
Brass Construction — Durable for repeated assembly and use.
Compact torch applications where a hose and regulator system is impractical
Jewellery, craft & precision work with compatible Light Line burners
Primus 2000 & Calor 340 cylinder users
Replacing a worn 8716 neck and valve assembly
Compact cylinder-mounted torch assembly for the Sievert Light Line range. The Sievert Light Line 871601 is in stock and ready to ship. Compatible burners (8725, 8719, 8720, 8842) sold separately.
Specification
Sievert Light Line 871601 Gas Blow Torch Specification
Brand
Sievert
Article Number
871601
Handle Model
8716
Product Type
Light Line Neck & Valve Assembly
Handle Material
Steel (brass internals)
Inlet
Primus 2000 or Calor 340 gas cylinder – direct connection
Outlet Thread
M8 × 0.75 (Sievert Light Line)
Valve Type
Needle valve
Safety Feature
Back pressure valve – reduces flare-up risk
Compatible Burners
8725, 8719, 8720 & 8842 (sold separately)
Dimensions
178 × 27 × 86mm
Weight
136 g
Features
Sievert Light Line 871601 Gas Blow Torch Features
Direct Cylinder Connection — Connects directly to Primus 2000 or Calor 340 cartridges — no hose, no regulator, fully self-contained torch system.
Needle Valve — Precise flame control directly at the assembly.
Back Pressure Valve — Reduces the risk of flare-up on ignition.
M8 × 0.75 Burner Thread — Accepts Sievert Light Line burners 8725, 8719, 8720 and 8842 — burners sold separately.
Brass Construction — Durable for repeated assembly and use.
