Calor 10mm Angled 30mbar Caravan Gas Regulator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Recommended Cylinders (not included):

Propane

6 kg

Butane

7 kg

You will be redirected to another Calor store to view this cylinder.

Calor 10mm Angled 30mbar Caravan Gas Regulator

Name: Calor 10mm Angled 30mbar Caravan Gas Regulator
SKU: 603013
Price: 25.44 GBP
Availability: OutOfStock

Out of stock

£25.44 £21.20

SKU

603013

Or 3 Interest-Free Payments of £8.48

Optional Extras:

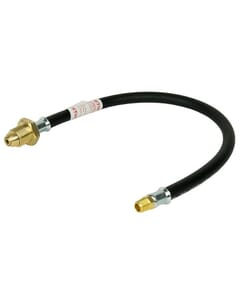

Calor 0.5m (20") POL x W20 Standard Hose

£13.74 £11.45

In stock

Calor 20" Propane Gas Pigtail POL x 1/4" Bspm

£13.74 £11.45

In stock

Calor 20" Propane/Butane Gas Pigtail 21mm Clip On x W20

£26.52 £22.10

In stock

Calor 20" Propane/Butane Gas Pigtail Butane Nut x W20

£16.26 £13.55

In stock

Calor 35" Propane/Butane Gas Pigtail Butane Nut x W20

£14.82 £12.35

In stock

Recommended Cylinders (not included):

Propane

6 kg

Butane

7 kg

You will be redirected to another Calor store to view this cylinder.

Description

The Calor Essentials Caravan/Motorhome 30mbar Gas Regulator is a two-stage regulator for bulkhead mounting in a vented cylinder compartment. It has an outlet pressure of 30mbar which can work with both Butane & Propane gas.

It has built-in over-pressure protection and switching between different gas cylinders is achieved simply by changing the pigtail or adding a cylinder adaptor.

Manufactured to European Standard 12867 which is now required for caravans and motor homes built to EN1949. Inlet:- W20 Outlet - 10mm Compression

Specification

Calor 10mm Angled 30mbar Caravan Gas Regulator Specification

Product code	603013
Regulator type	Caravan/Motorhome
Regulator operating pressure	30 mbar
Regulator gas type	Propane
Compatible Calor bottle	13kg Propane, 7kg Butane, 6kg Propane
Capacity kg/hr	1.5
Regulator inlet	W20
Outlet	10mm Compression Nut & Olive
Max inlet pressure	16 bar
