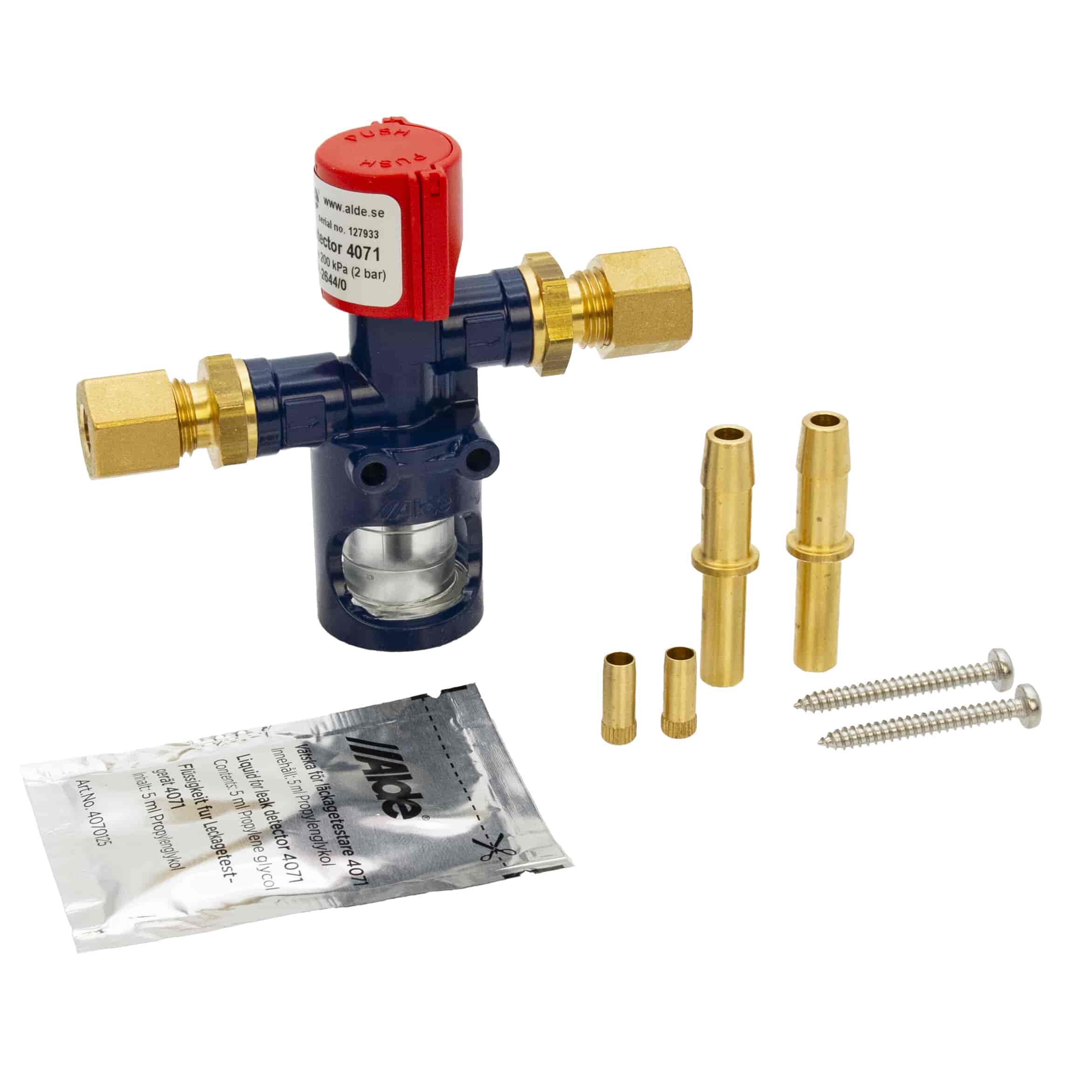

8mm Alde Marine/Boat Gas Leak Detector (Bubble Tester)
In stock
£85.00
£70.83
SKU
BUBB1
Or 3 Interest-Free Payments of £28.33
Description
Alde 8mm Marine Gas Bubble Tester – Boat Safety Scheme Approved | LPG Leak Detector
Bubble tester LPG leak detector with two clear view ports. Downstream leak detection for marine and LPG systems. Installs down-stream of the regulator - if bubbles appear in the fluid filled viewing chamber, there is a downstream leak. 2 bar maximum working pressure, 12 kW capacity. Comes complete with testing fluid. 1 year parts and labor warranty.
The Alde bubble tester is a compulsory or highly advisable component for boats that fall within the scope of the Boat Safety Scheme - it is a passive gas leak test which does not require any equipment or knowledge other than observing the sight glass. The bubble tester is installed in line with the low-pressure gas supply immediately after the regulator output - the bubble tester sits in the area of constant gas pressure behind the regulator. If gas is leaking past the regulator while all appliances are turned off - this indicates that there is a downstream gas leak - bubbles will appear in the fluid filled viewing chamber. The bubble tester has two side view ports - one may observe the bubble tester from either side of the installation.
Key Features & Benefits
- Boat Safety Scheme Approved - Recommended for compliance with Boat Safety Scheme LPG requirements on inland waterways boats.
- Visible Bubble Leak Detection - Bubbles in the sighting chamber indicate a downstream gas leak - simple, instant, no equipment required.
- 8mm Compression Inlet and Outlet - Standard 8mm compression connection for fitting into 8mm copper LPG gas pipe runs.
- Dual Viewing Windows - Sighting chamber visible from both sides of the installation.
- Supplied with Fluid - Ready to install, no additional consumables required.
- 2 Bar Max Working Pressure / 12kW Capacity
- Compact - 90 × 60 × 30mm
- LPG Only - Propane and Butane
- 12-Month Warranty
Ideal For
- Narrowboats and inland waterways boats under the Boat Safety Scheme
- Marine LPG gas system installations on yachts and motor boats
- Caravans and motorhomes where a visible gas leak check is required
- Any LPG installation in 8mm copper pipe where a downstream leak indicator is needed
Boat Safety Scheme approved LPG bubble tester - supplied with fluid, ready to install. A must-have for boats, caravans, and LPG systems
Specification
8mm Alde Marine/Boat Gas Leak Detector (Bubble Tester) Specification
| Brand | Alde |
|---|---|
| Product Type | Gas Leak Detector Bubble Tester |
| Approval | Boat Safety Scheme approved |
| Gas Type | LPG – propane and butane only |
| Pipe Connections | 8mm compression inlet & outlet |
| Max Working Pressure | 2 bar (29.4 psi) |
| Capacity | 12 kW |
| Viewing Windows | Both sides |
| Dimensions (H × W × D) | 90 × 60 × 30mm |
| Supplied With | Fluid included |
| Suitable Applications | Marine, caravan & LPG gas systems |
| Warranty | 12 months |
Features
8mm Alde Marine/Boat Gas Leak Detector (Bubble Tester) Features
- Boat Safety Scheme Approved - Recommended for compliance with Boat Safety Scheme LPG requirements on inland waterways boats.
- Visible Bubble Leak Detection - Bubbles in the sighting chamber indicate a downstream gas leak - simple, instant, no equipment required.
- 8mm Compression Inlet and Outlet - Standard 8mm compression connection for fitting into 8mm copper LPG gas pipe runs.
- Dual Viewing Windows - Sighting chamber visible from both sides of the installation.
- Supplied with Fluid - Ready to install - no additional consumables required.
- 2 Bar Max Working Pressure / 12kW Capacity
- Compact - 90 × 60 × 30mm
- LPG Only - Propane and Butane
- 12-Month Warranty
