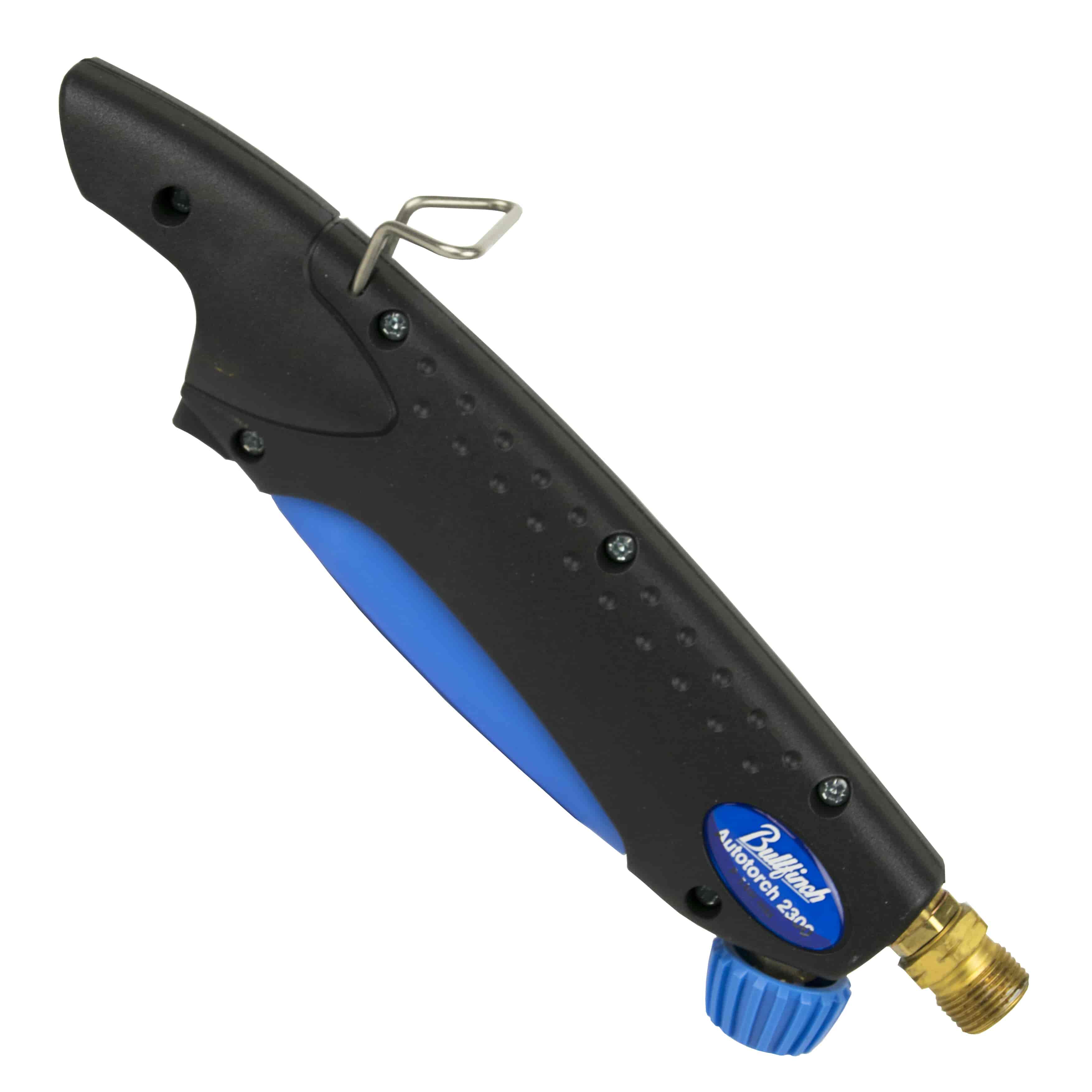

The Bullfinch 2300 AutoTorch handle represents the most-advanced of two Bullfinch AutoTorch Handles. Where as the 2100 AutoTorch has a push button ignitor which can be separated from its needle valve, the 2300 AutoTorch has a single lever that serves both functions. Simply pull the lever to activate your flame and turn the gas on at the same time. Release the lever and your flame will shut-off. This "deadmans trigger" design ensures the torch will not remain active while you are away tending to another task. This is especially important when using a torch in-site at a jobsite location.
Another key distinction of the Bullfinch 2300 handle is its swiveling 3/8"BSP-LH male union inlet. The swiveling inlet of the 2300 handle is designed so that it may twist around with respect to the hose, eliminating twisting and tangling of hoses throughout a long workday. Additionally, all 7 snap-fit burners (2302, 2303, 2304, 2305, 2306, 2321) may be changed by hand without the need for any tool. Also, there is an integrated needle valve that provides independent flame regulation. Important note from Bullfinch: the hose connector is NOT included with this handle. A 1031 swivel hose connector or a 1021 hose connector for 5mm bore hose must be used to attach this handle to a hose.
Key Features & Benefits
Single-Lever Operation — One motion ignites the burner and opens the gas — pull to light, release to cut off. Simpler and safer than a push-button ignition with a separate valve.
Deadman's Trigger Safety — Flame and gas cut off when the lever is released — torch cannot burn unattended.
Swivel 3/8" BSP-LH Inlet — Prevents hose twisting and tangling during extended use — the handle rotates freely from the hose connection.

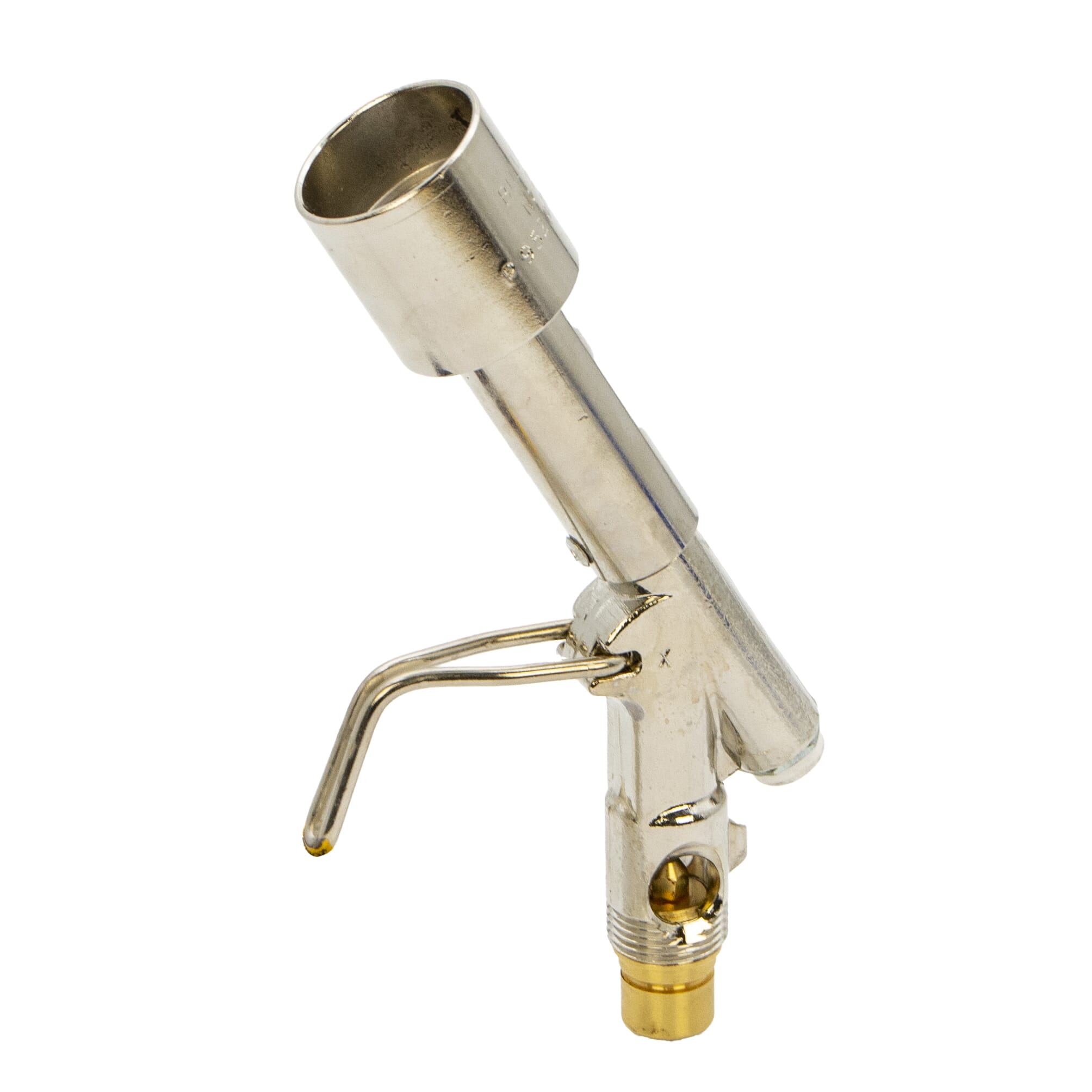

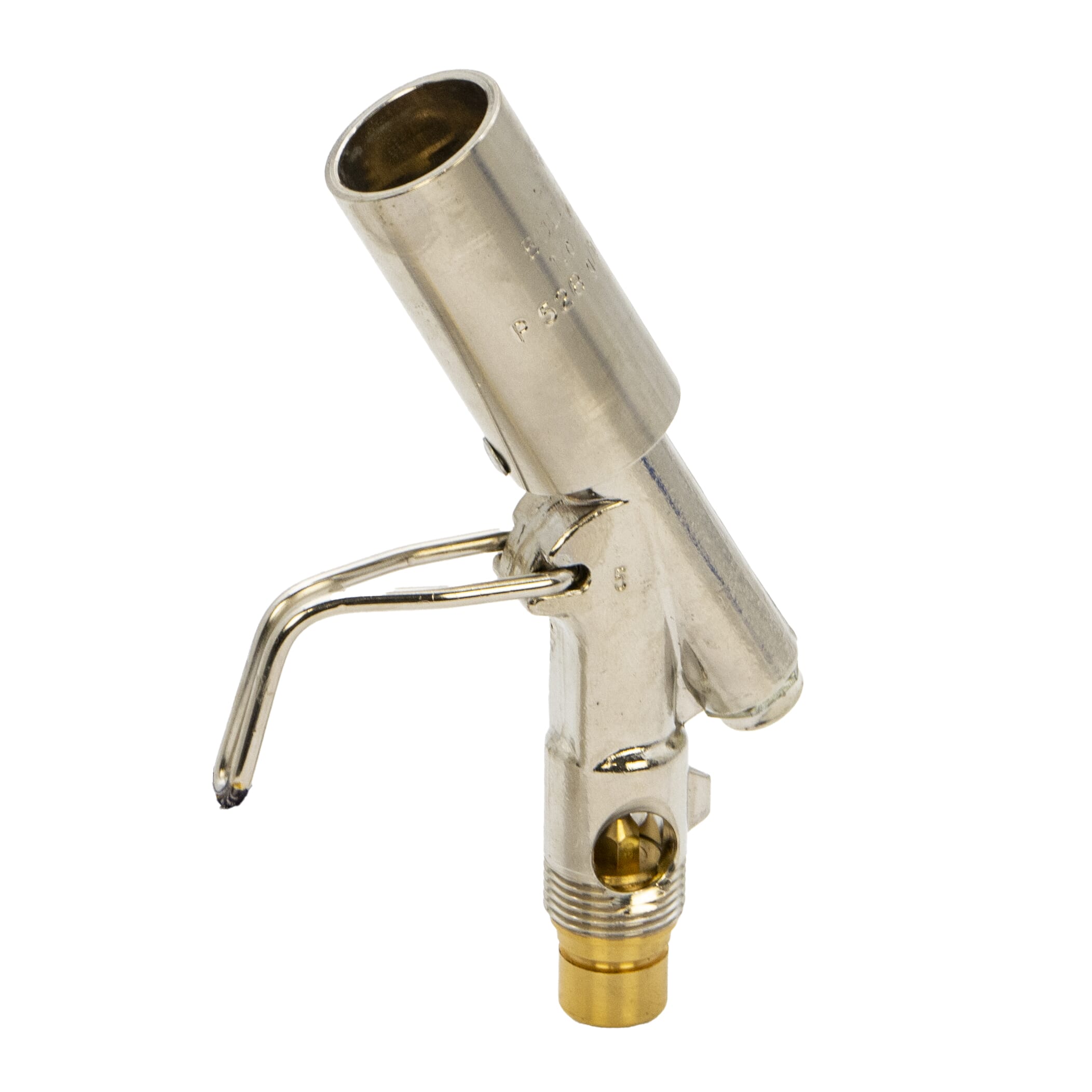

Seven Snap-Fit Burners — Compatible with burners 2302, 2303, 2304, 2305, 2306 and 2321 — press and pull to remove, push and snap to fit.
Needle Valve Flame Adjustment — Precise, independent flame control beyond the basic on/off of the lever.
Not Compatible with Brazing Burners — 2300 series burners only. Prevents incorrect use with Autotorch brazing system components.
Up to 800°C (General Conditions) — Suitable for soft soldering, silver soldering and lead welding. Not for bronze brazing.
Composite Plastic & Brass Construction — Durable, professional-grade handle materials.
5-Year Warranty — Against faulty components and workmanship.
Ideal For
Professional plumbers & heating engineers on site
Soldering, brazing & general heating applications
One-handed torch operation
Replacing a worn 2300 handle in an existing setup
Building a new Bullfinch 2300 AutoTorch configuration
Engineers wanting deadman's safety on a torch handle
Handle only — burners and hose connector sold separately. The Bullfinch 2300 AutoTorch Handle is in stock and ready to ship. Compatible hose connectors: 1031 (swivel) or 1021 (for 5mm bore hose).
Specification
Bullfinch 2300 AutoTorch Gas Blow Torch Handle Specification
Brand
Bullfinch
Model
2300
Product Type
AutoTorch Gas Blow Torch Handle
Ignition Type
Single-lever piezo-electric – automatic
Safety
Deadman's trigger – flame off on lever release
Inlet
Swivel 3/8" BSP-LH male union (hose connector not included)
Bullfinch 2300 AutoTorch Gas Blow Torch Handle Features
Single-Lever Operation — One motion ignites the burner and opens the gas — pull to light, release to cut off. Simpler and safer than a push-button ignition with a separate valve.
Deadman's Trigger Safety — Flame and gas cut off when the lever is released — torch cannot burn unattended.
Swivel 3/8" BSP-LH Inlet — Prevents hose twisting and tangling during extended use — the handle rotates freely from the hose connection.
Seven Snap-Fit Burners — Compatible with burners 2302, 2303, 2304, 2305, 2306 and 2321 — press and pull to remove, push and snap to fit.
Needle Valve Flame Adjustment — Precise, independent flame control beyond the basic on/off of the lever.
Not Compatible with Brazing Burners — 2300 series burners only. Prevents incorrect use with Autotorch brazing system components.
Up to 800°C (General Conditions) — Suitable for soft soldering, silver soldering and lead welding. Not for bronze brazing.
Composite Plastic & Brass Construction — Durable, professional-grade handle materials.
5-Year Warranty — Against faulty components and workmanship.
