Rinnai Infinity HD55i Low-NOx 52.6kW Internal LPG Gas Water Heater

Rinnai Infinity HD55i Low-NOx 52.6kW Internal LPG Gas Water Heater

Name: Rinnai Infinity HD55i Low-NOx 52.6kW Internal LPG Gas Water Heater
SKU: W55IVCX-LPG
Price: 1200.00 GBP
Availability: InStock

In stock

£1,200.00 £1,000.00

SKU

W55IVCX-LPG

Optional Extras:

Rinnai 11i, 17i and HD55i Standard Flue Kit

£154.44 £128.70

In stock

Rinnai 11i, 17i and HD55i Vertical Flue Kit

£115.75 £96.46

In stock

Recommended Cylinders (not included):

Propane 47 kg

Propane 19 kg

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Recommended Cylinders (not included):

Propane 47 kg

Propane 19 kg

Description

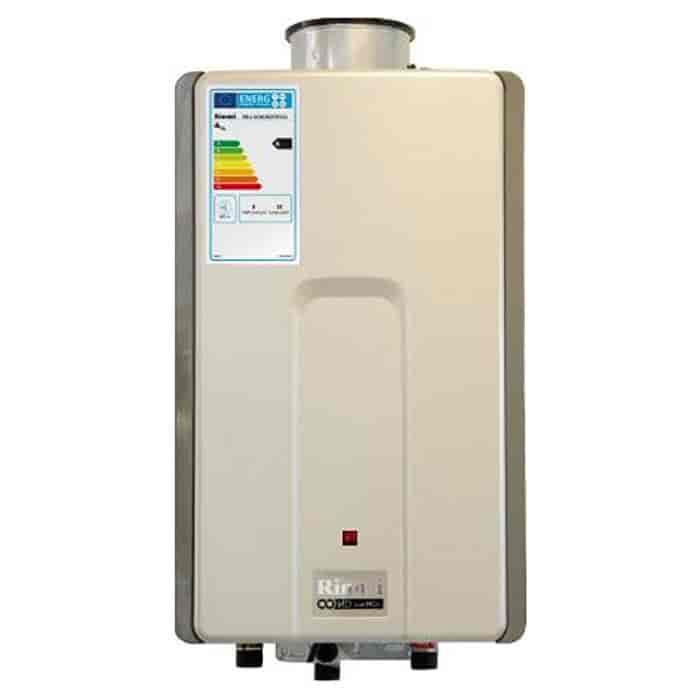

The Rinnai HD55i internal water heater is a room sealed, wall hung, LPG or natural gas fired continuous flow water heater. The Infinity Low NOx 55i is capable of supplying in excess of 820 litres per hour raised 50˚C making it an ideal choice for high capacity light commercial to large industrial system specifications as up to 25 units can be cascaded to supply any specification.

The Infinity Low NOx range incorporates patented down firing pre-mix burner technology meaning that the appliances produce less than 20ppm NOx future proofing the systems against legislative changes.

*Please note this water heater includes an easy to fit LPG conversion kit, allowing you to seamlessly switch between natural gas and liquid petroleum gas for uninterrupted hot water.

Specification

Rinnai Infinity HD55i Low-NOx 52.6kW Internal LPG Gas Water Heater Specification

Oversized item (delivered on a pallet)

Installation	Internal
Dimensions (H x W x D)	583mm x 357mm x 233mm
Weight	28kg
Exhaust type	Forced room sealed (Concentric)
Temperature range	40, 42, 50, 55, 60, 65, 75, 85°C
Ignition method	Electronic
Gas consumption - Natural gas	52.6kW - 4.05kW
Low NOx	Less than 20ppm
Water flow rate	1.5** to 37 L/min
Noise level	41 db(A)
Minimum operating pressure	1.0 bar
Power supply	230V AC 50hz 1ph
Connections - Gas, Water inlet, Water outlet	3/4 bsp

Features

Rinnai Infinity HD55i Low-NOx 52.6kW Internal LPG Gas Water Heater Features

The Rinnai Infinity does not run out of hot water
20% Hydrogen Ready
Ultra Low-NOx
Forced room sealed
The temperature of outgoing hot water is constantly monitored by a built-in sensor.
Temperature range of 40-85 degrees centigrade
Error messages are displayed on the temperature controllers, assisting with service and fault diagnosis
Compact design with internal and weather-proof external models
Extremely quiet operation
Ignition Direct Electronic
Save space, water and energy
Ideal for temporary or emergency hot water
